01 / DESIGN
Get it ready to make
- New product development (NPI)
- Design for manufacturing
- Reverse engineering
From drawing to parts. Fast.
One Irvine shop for the enclosure, the overmold, the cable harness, and the box build. Design, 3D printing, molding, and 100% electrical test, from prototype to production. Pickup on the floor, or we ship. ITAR registered.
THE SHOP
CAPABILITIES
02 / PROTOTYPING
Hold it in your hands
- Large-format FDM and SLA
- Silicone and urethane casting
- Injection molding
03 / PRODUCTION
Build the harness and the box
- Cable assemblies and wire harnesses

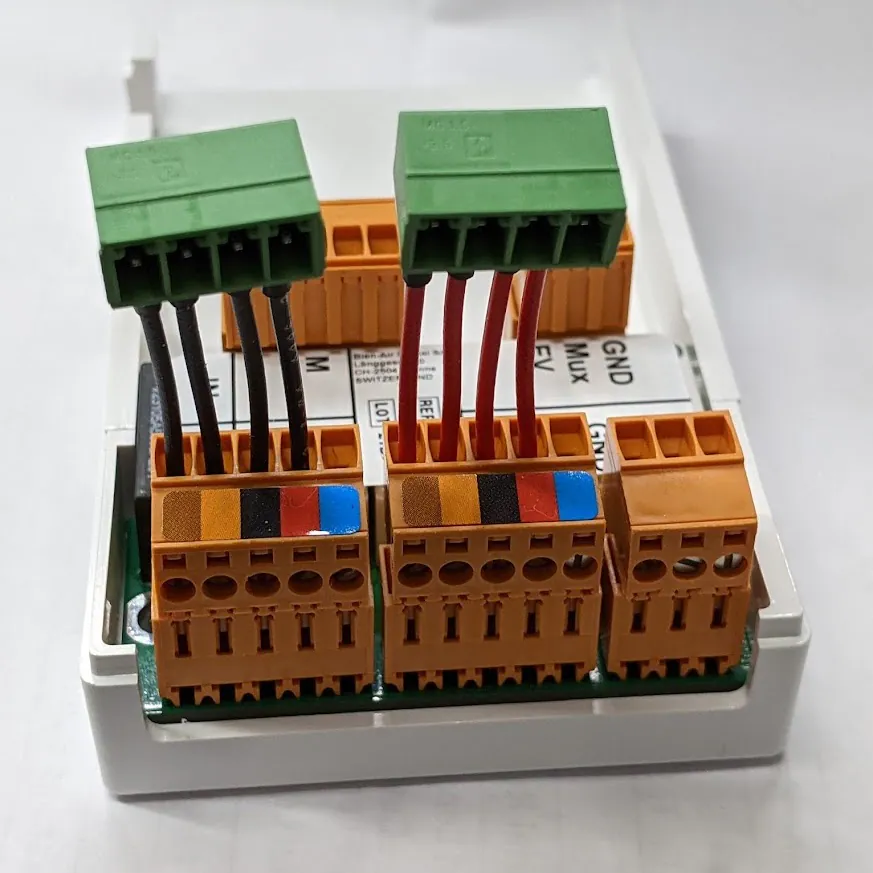

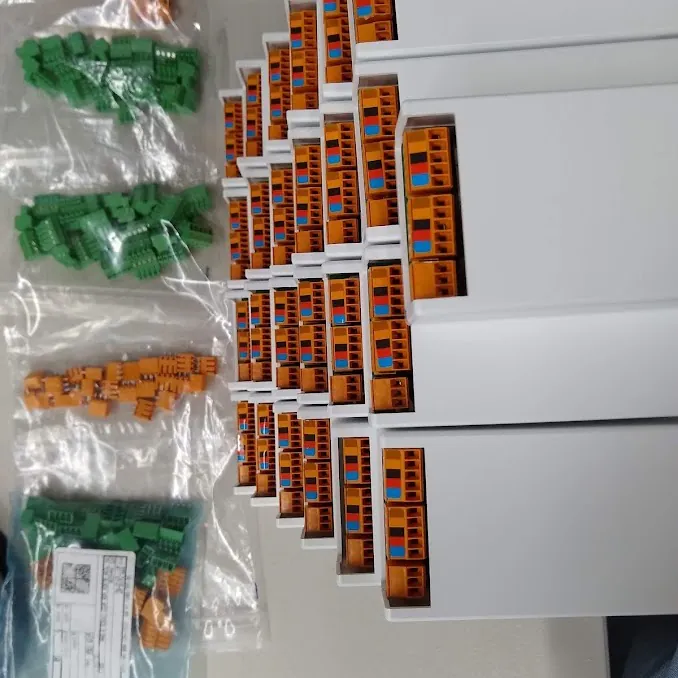

- Custom overmolding and box builds
- 100% electrical test

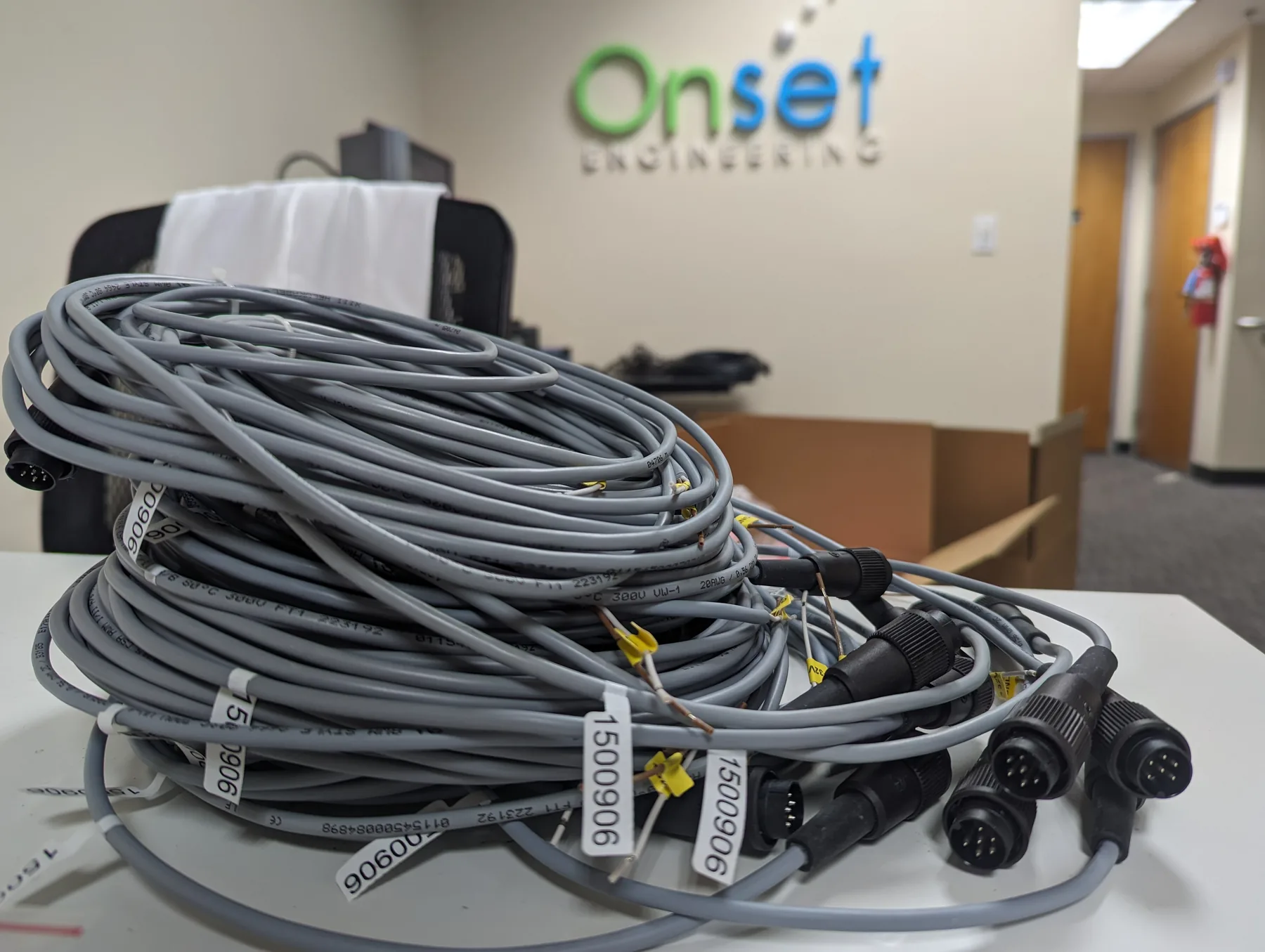

CABLE ASSEMBLIES
One roof, from the connector to the box.

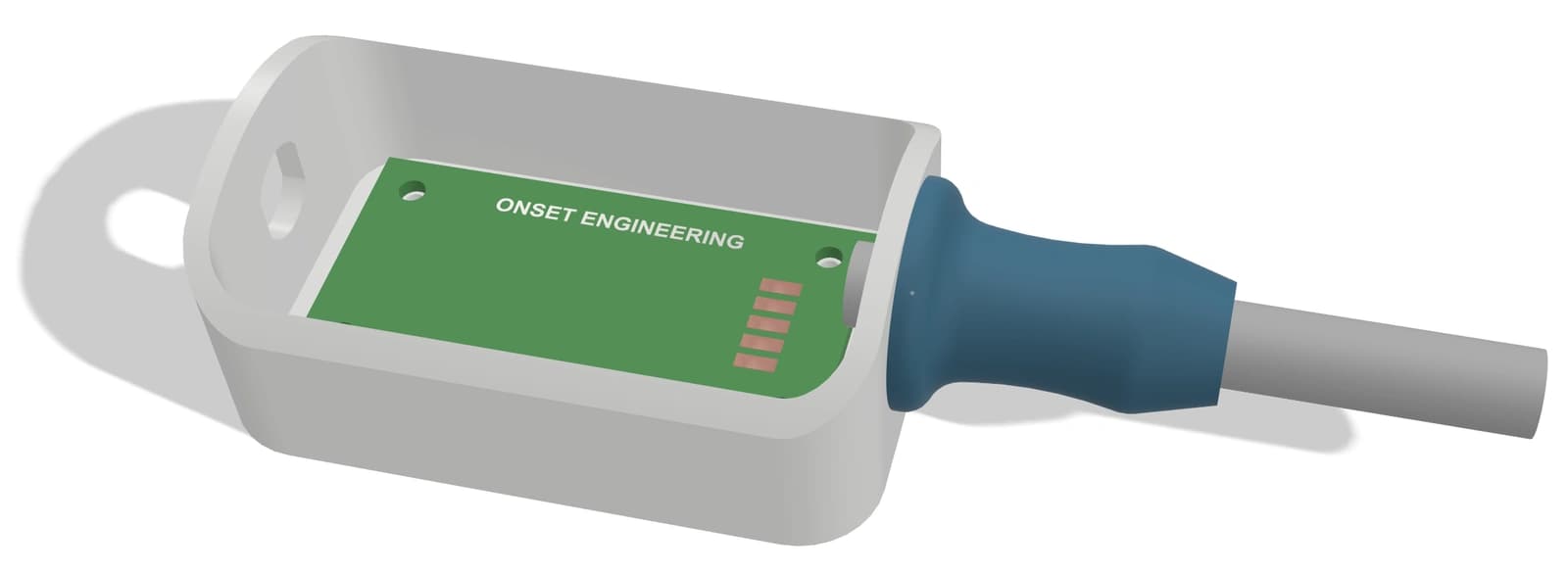

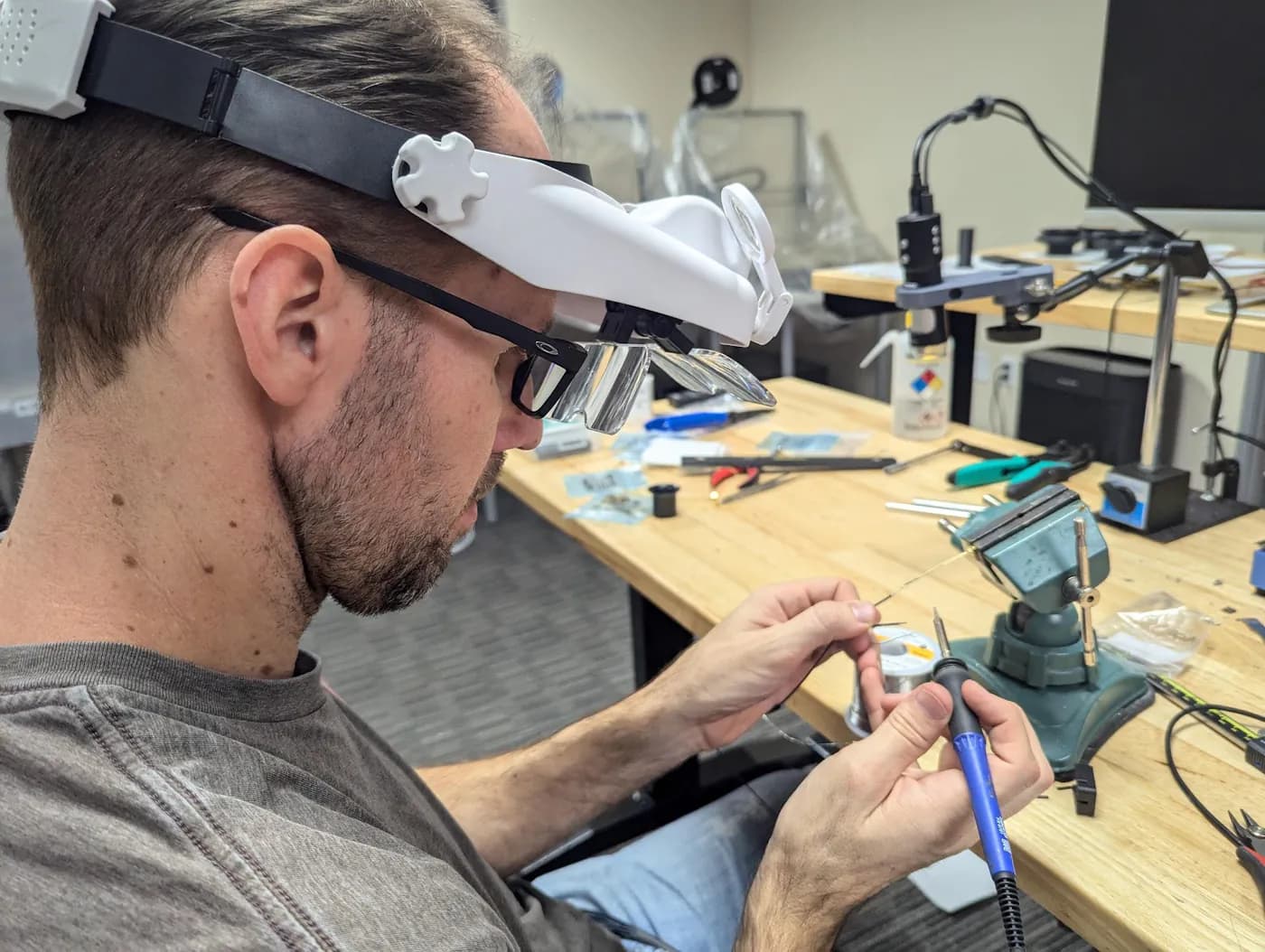

Design the enclosure, 3D-print or mold the housing, custom-overmold the connector and strain relief, then build and 100% electrically test the harness and the electromechanical box. Prototype through production, without a high minimum.

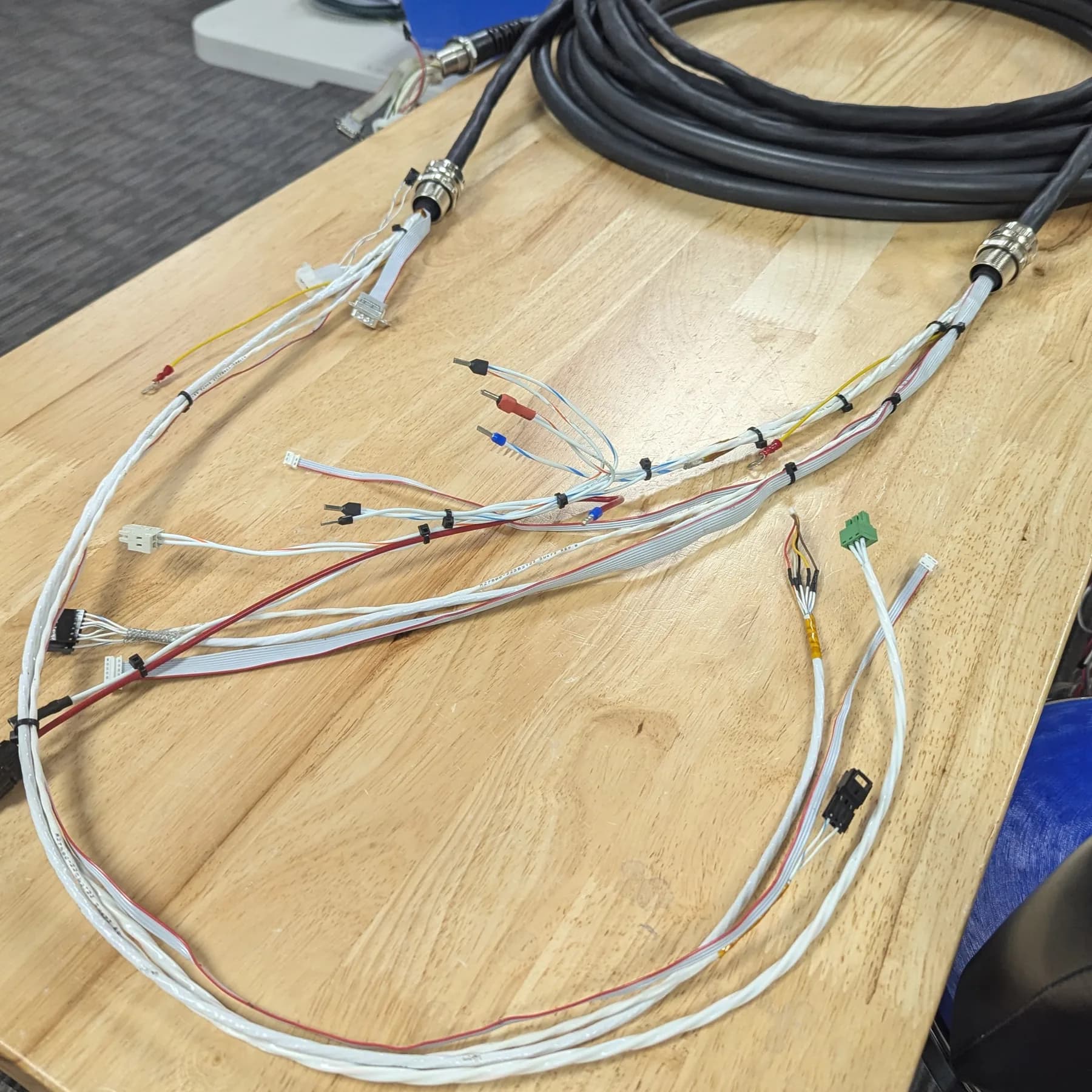

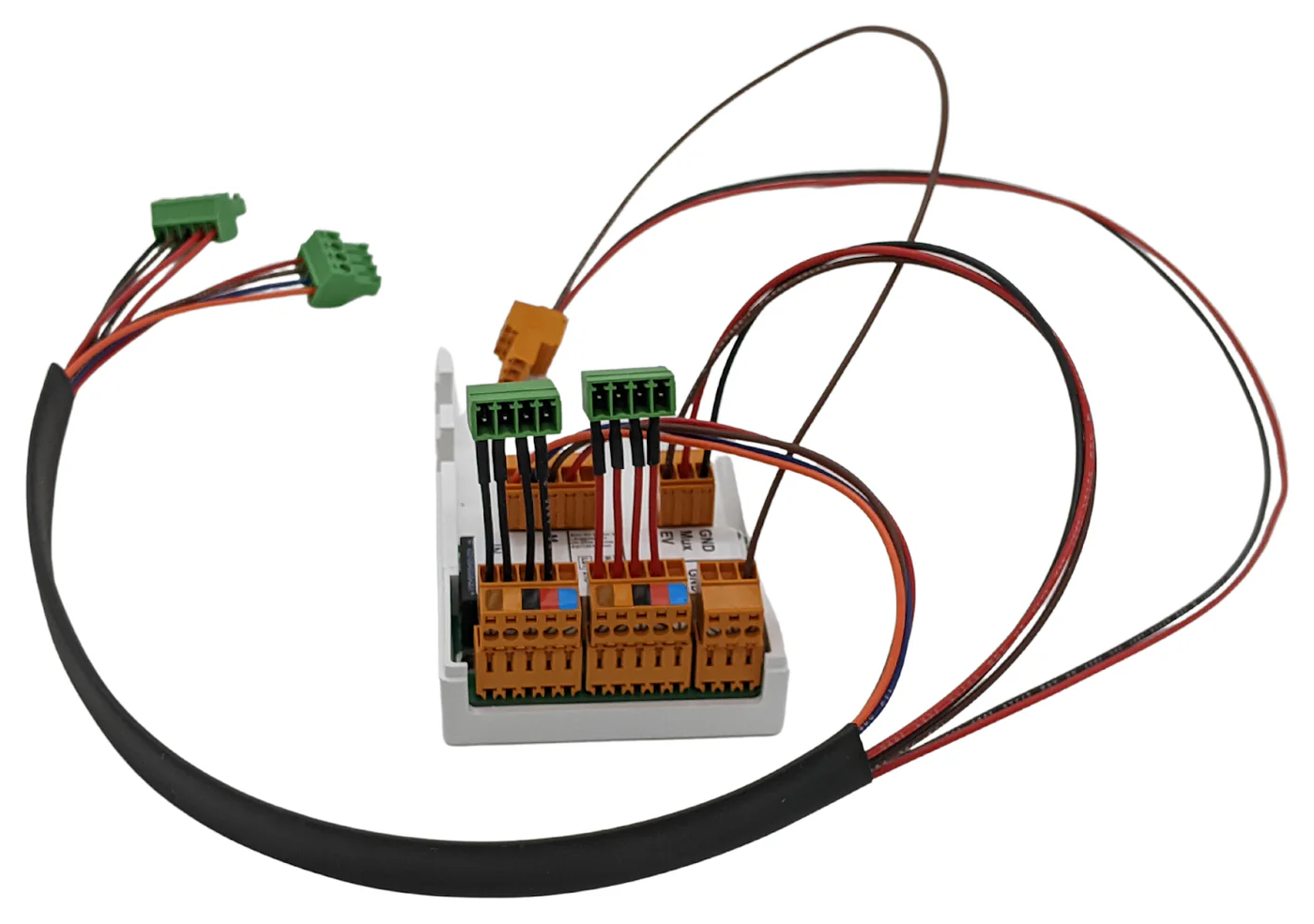

Cable assemblies and wire harnesses
DESIGN
From the model.
New product development and design for manufacturing, taken through to a part the shop can mold.
Medical connectors and drawing standards
PROTOTYPING
In hand.

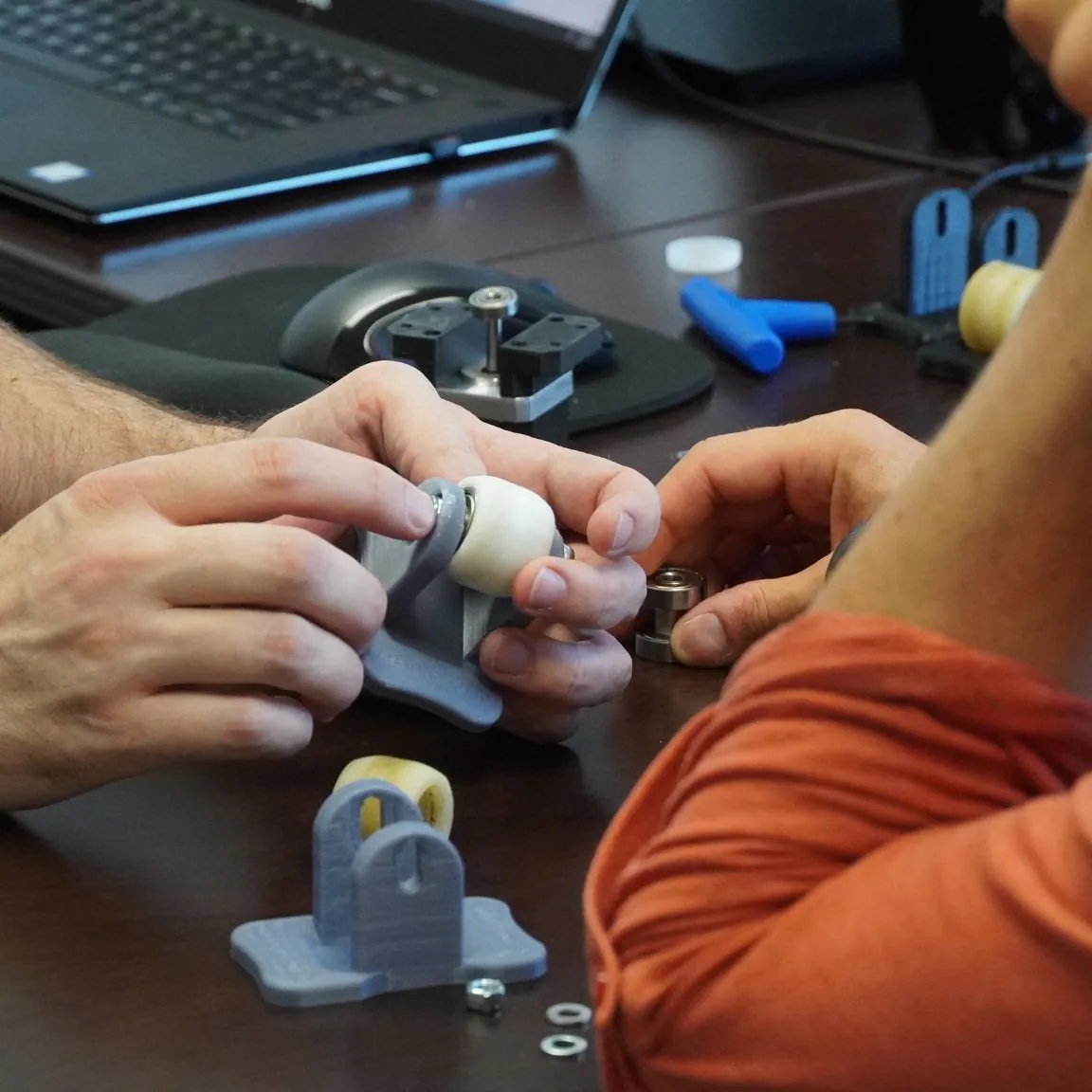

Printed prototypes, fit on the bench before a casting or a mold.
Materials and build sizes

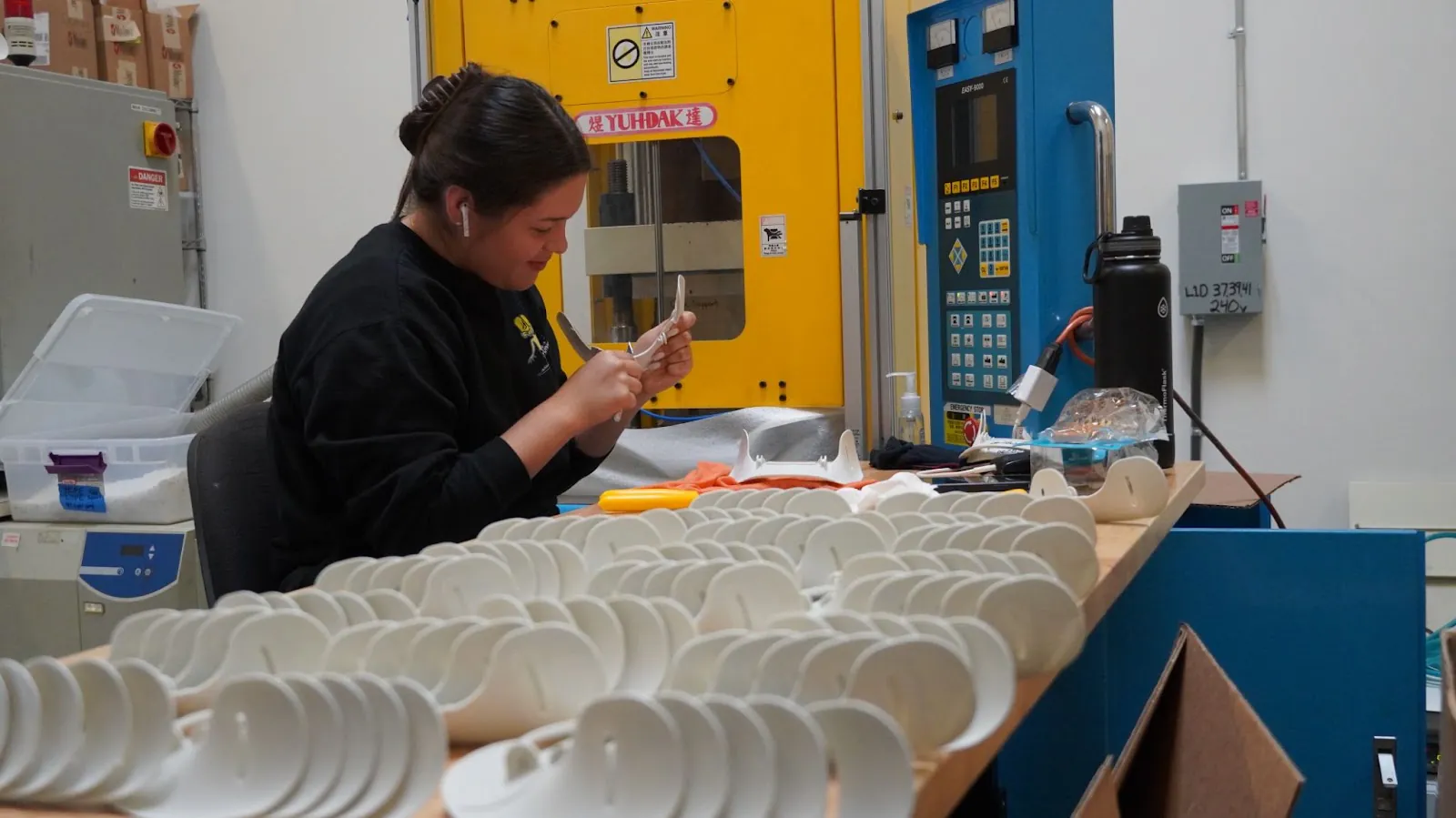

PRODUCTION
On the press.
Molded parts, harnesses, and box builds from the Irvine floor.
Print, build, and test
3D PRINTING
3D printing, quoted the same day.
Extra-large FDM, and SLA when the part needs a finer surface. Send STL, 3MF, STEP, or SolidWorks, or a drawing or sample if that is what you have. Quotes the same day. Most prints in two business days.
Send a schematic, wire list, pinout table, BOM, PDF drawing, STEP, STL, 3MF, or SolidWorks file. A physical sample cable or part is enough to reverse-engineer and replicate.
Materials and build sizesFDM — large format, up to 47 x 23 x 31 in
2 business days$150
SLA — up to 145 x 145 x 175 mm
2 business days$200
Casting — silicone / urethane, printed mold
2–3 weeks$500 + tooling
Injection molding — aluminum or steel mold
3–4 weeks$1,000 + tooling
| Process | Lead time | Min. order |
|---|---|---|
| FDM — large format, up to 47 x 23 x 31 in | 2 business days | $150 |
| SLA — up to 145 x 145 x 175 mm | 2 business days | $200 |
| Casting — silicone / urethane, printed mold | 2–3 weeks | $500 + tooling |
| Injection molding — aluminum or steel mold | 3–4 weeks | $1,000 + tooling |

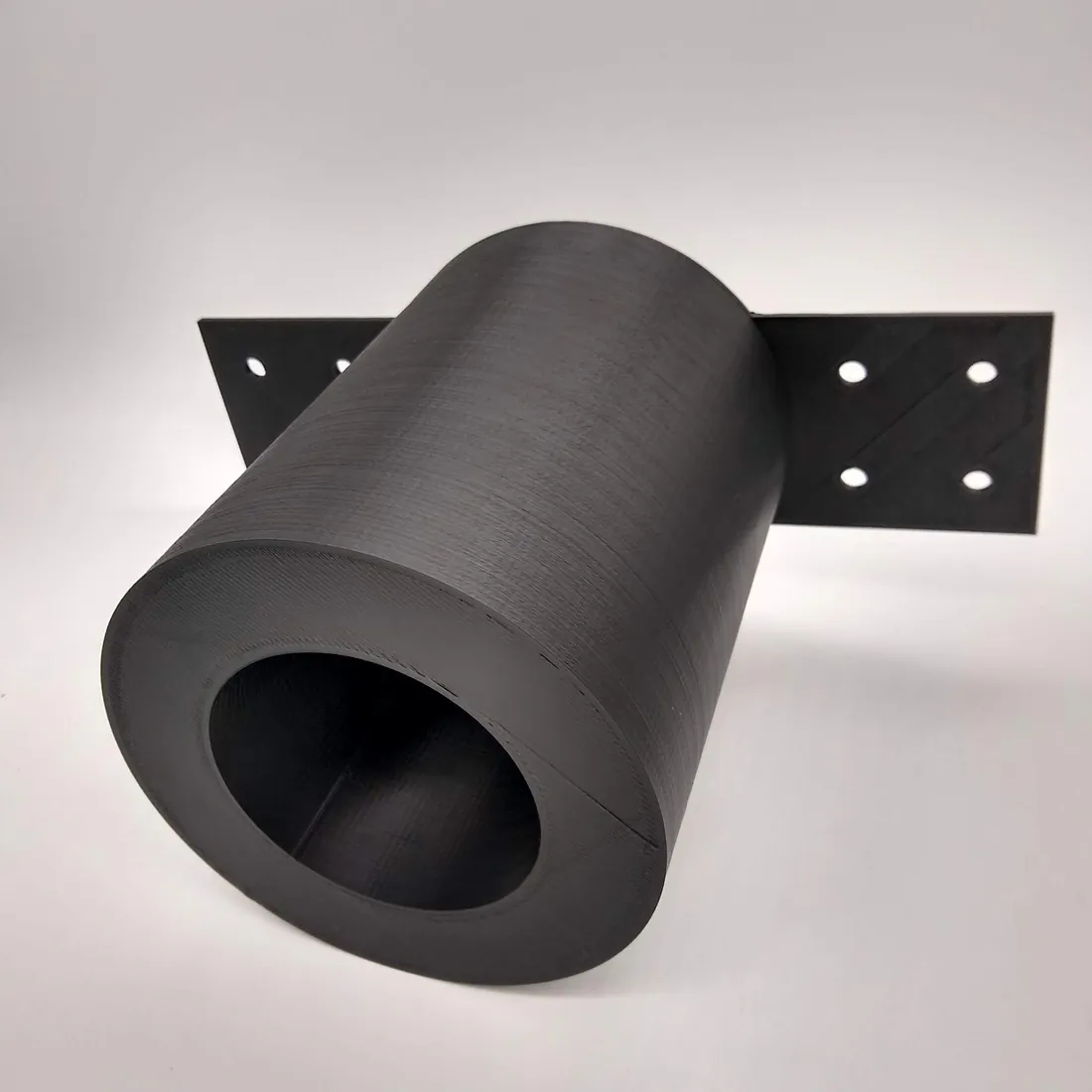

LARGE FORMAT
Extra-large FDM.

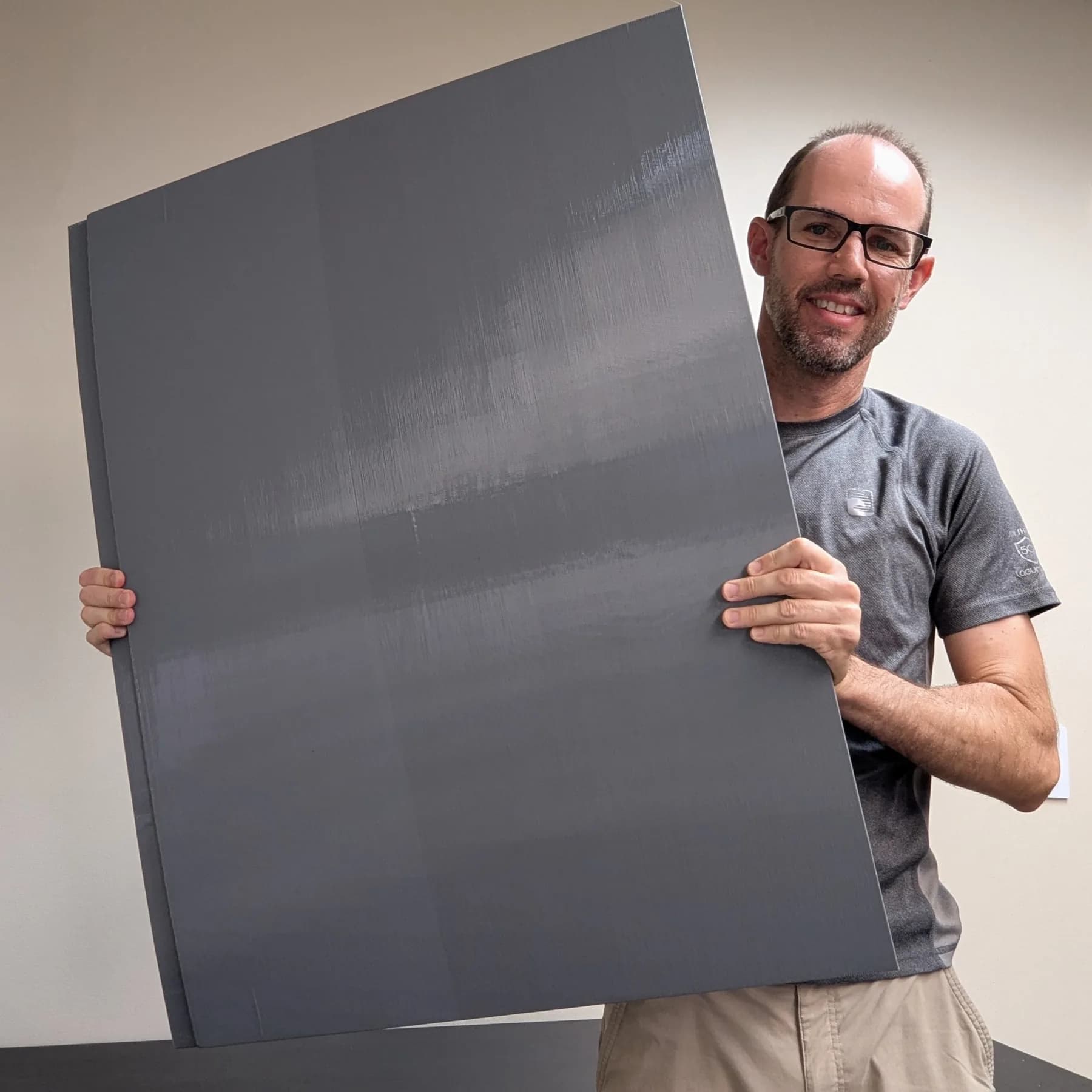

Panels and parts up to 1200 x 600 x 800 mm (47 x 23 x 31 in), the size of a panel you can hold in front of you.
SLA is for surface finish and detail, up to 145 x 145 x 175 mm.

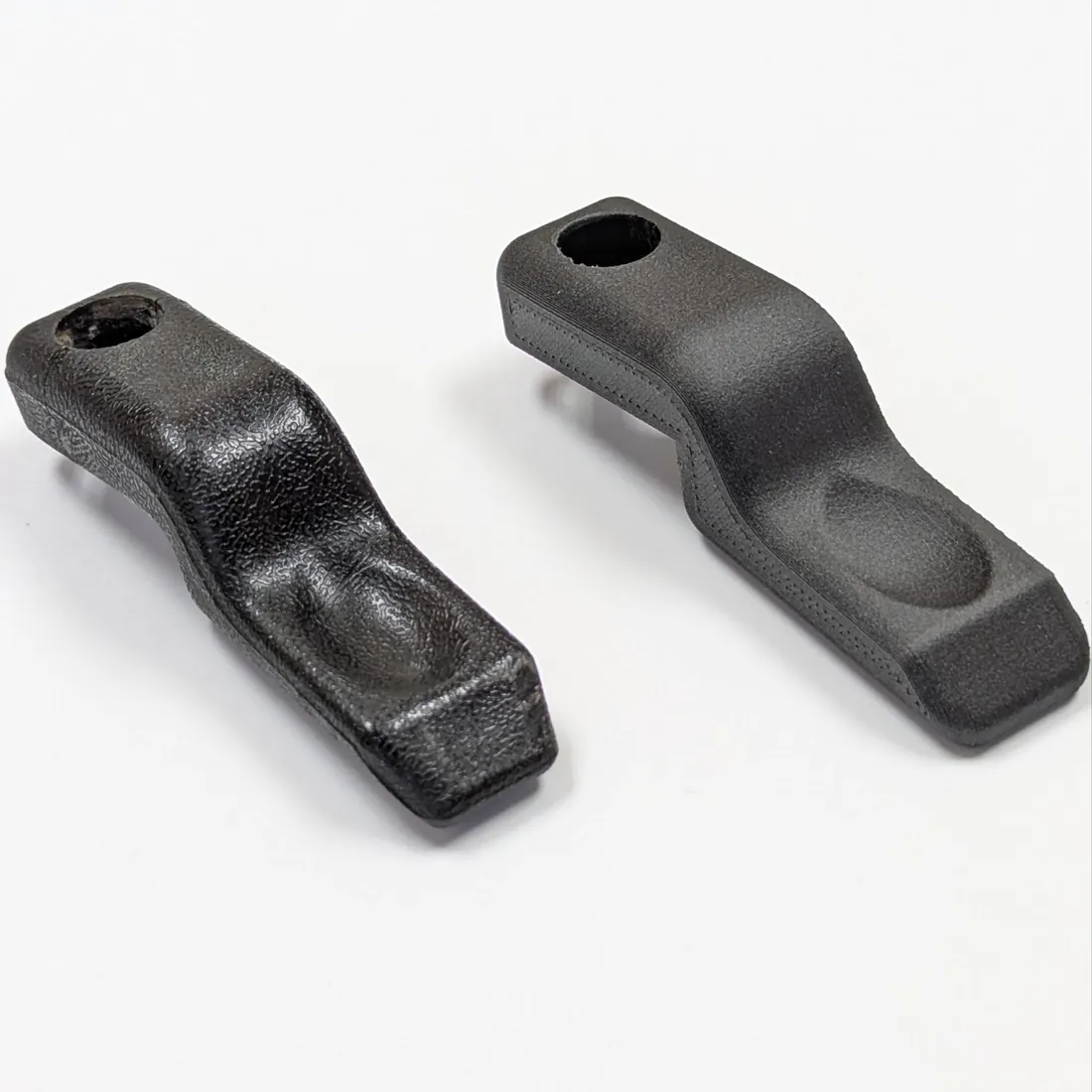

PRINTED PARTS
